Mapping the Ring Nebula’s Structure

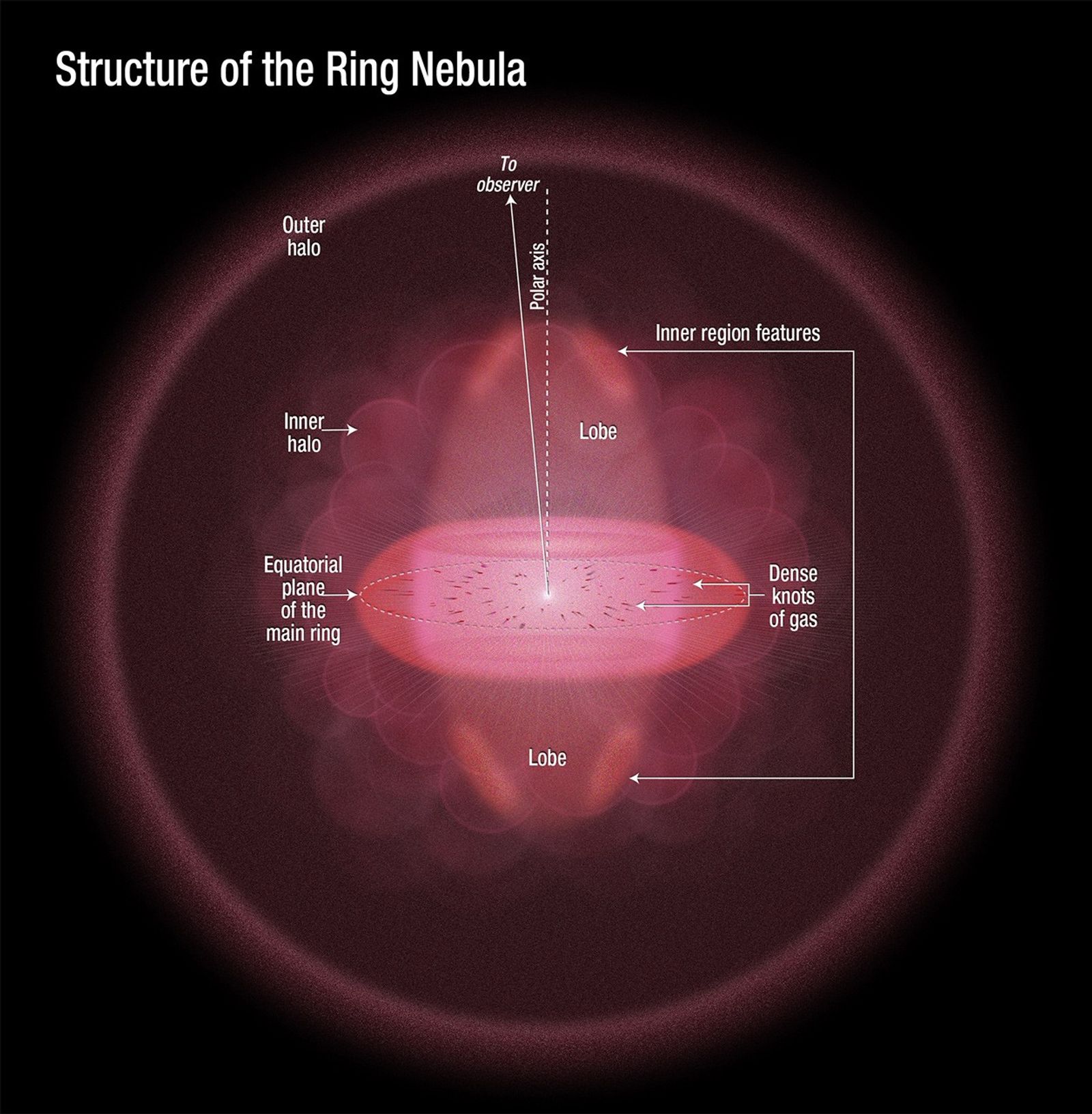

This illustration depicts a sideways view of the Ring Nebula, as deduced by astronomers using new Hubble observations. The doughnut-shaped feature in the center of the graphic is the main ring. The lobes above and below the ring comprise a football-shaped structure that pierces the ring. Dense knots of gas are embedded along the ring's inner rim.
